Coupon Holders
Corrosion coupon holders are used to position corrosion coupons inside pipelines and are designed and manufactured based on the type of corrosion coupons and their placement location (top, middle, or bottom of the pipe).
Types of coupon holders based on the type of corrosion coupon that can be installed include:
- Strip
- Strip Ladder
- Disk
- Multi Disk
- Stress
- and …
A coupon holder is a device used in corrosion monitoring systems to securely and firmly hold corrosion coupons in place within a pipeline or vessel, exposing them to the fluid flow over time. The coupon holder is attached to the end of the solid plug. A left-hand threaded connection ensures that the holder does not loosen from the plug when the plug is being removed from the access fitting. Coupon holders are made from stainless steel and super alloys.
Types of coupon holders
Coupon holders produced by Borna Electronics Co. are typically made of 316 or 316L stainless steel, manufactured in accordance with international standards such as ASTM A276 and ANSI/NACE MR0175/ISO 15156 (Relevant to sour environments), and they can also be customized based on customer requirements. In environments with extremely severe corrosive conditions, materials with higher corrosion resistance, such as Duplex stainless steel, Nitronic, Inconel 625 and …, can be used.

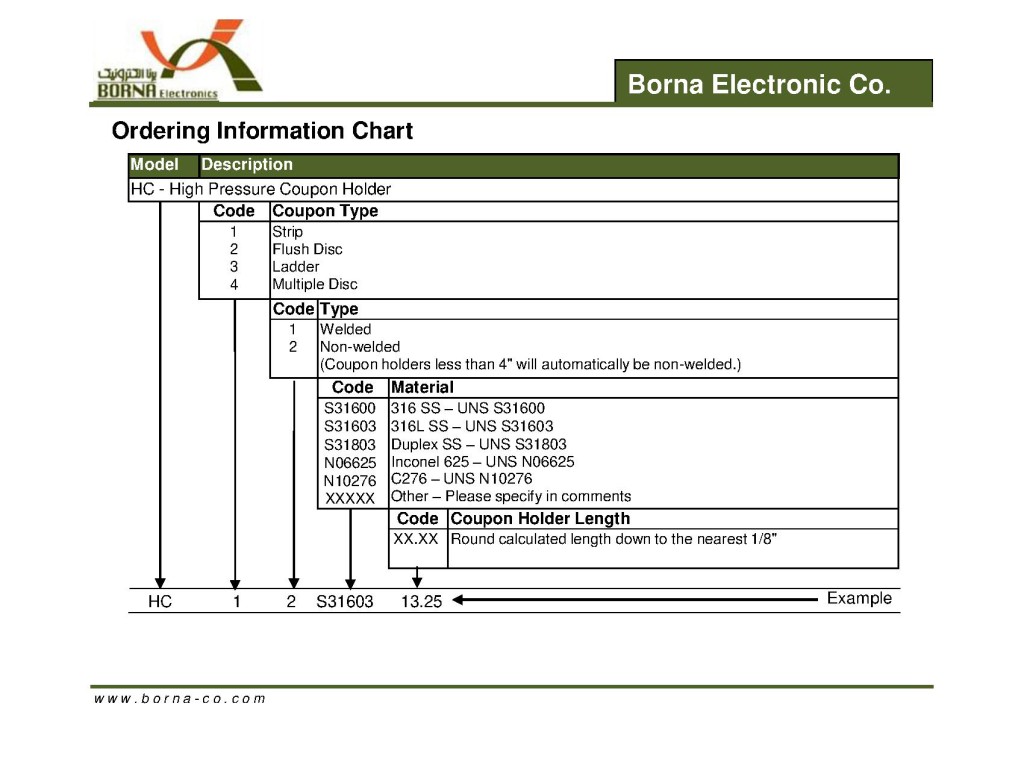

Coupon holders coding table of Borna Electronics Co.
