Submarine pipelines may be buried in seabed sediment or directly exposed to seawater. Cathodic protection supplements the pipeline coating, which may be used alone or with a protective concrete layer. Sacrificial systems are usual because they need no electrical supply and are easy to install. Aluminium and zinc are common, with aluminium preferred for higher current capacity. Bracelet anodes fit around the pipe and usually comprise two halves joined through their inserts by welding or bolts.
Anodes are spaced evenly along the pipeline. Their number, shape and position are determined by calculations and design experience to prevent underprotection and excessive overlap that wastes anode material. Anode cables connect electrically to the pipe by direct welding or clamps.

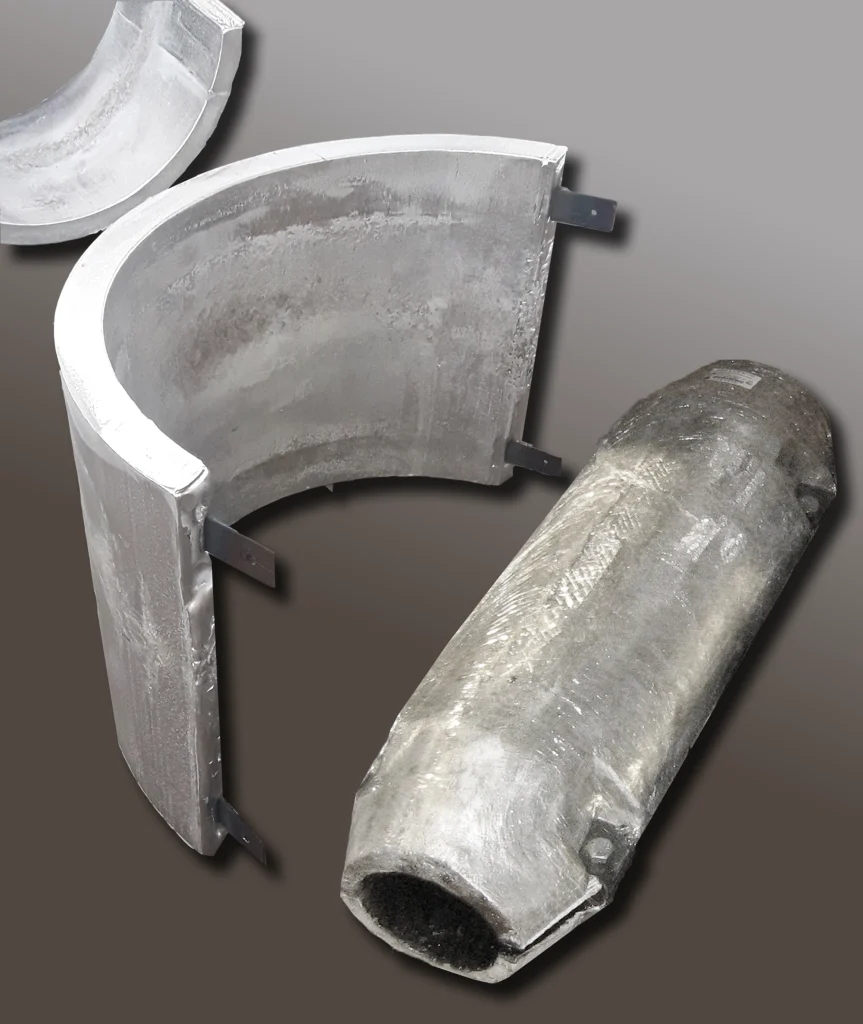

Aluminium bracelet anodes for submarine pipelines

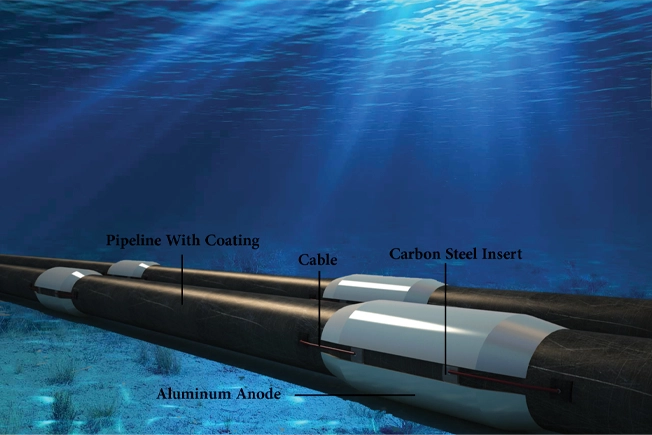

Aluminium Bracelet Anode Protection of Submarine Pipelines without Concrete Coating

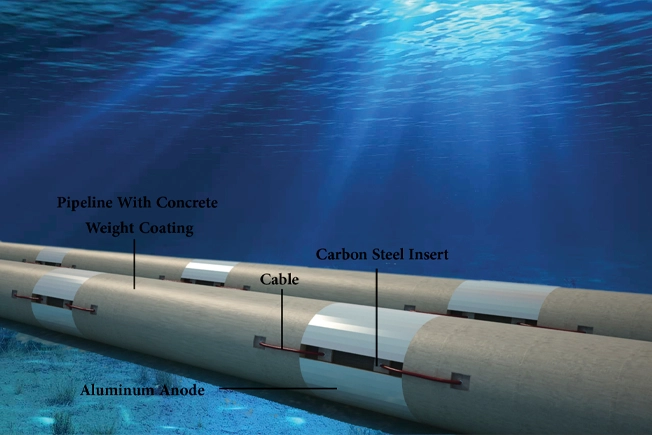

Aluminium Bracelet Anode Protection of Submarine Pipelines with Concrete Coating
With more than 30 years of distinguished cathodic protection experience, Borna Electronic provides design, equipment supply, consultancy and installation for submarine pipelines.
