Cathodic Protection of Ships and Vessels

Ships and vessels face more severe corrosion than fixed marine structures because of their movement and speed. Cathodic protection supplements coatings and covers the wetted hull and tanks. Both sacrificial anode and impressed current methods are used. Sacrificial systems are more common because they are easy to install and maintain and operate in different conditions, although impressed current use is increasing. Selection depends on facilities, constraints, calculations and design experience.

Selection Criteria for Ship and Vessel Cathodic Protection

Protection methodSacrificial anodesImpressed current
Electrical supply requiredNoyes
Typical protection lifeMaximum 5 yearsMinimum 20 years, extendable to 30 years
Potential current interference and harmful effects on adjacent structures NonePresent in some cases while berthed
Intelligent equipment installation possibleNonePresent
Common anode typesAluminumMixed metal oxide MMO
ZincLead–silver
MagnesiumPlatinised
Most widely used anodeZinc, because of more uniform corrosion and resistance to surface erosion by water flowMMO, because of better environmental compatibility and lower cost

Vessel undergoing repairs

Magnesium anodes may occasionally protect small vessels operating in rivers or fresh water. Only magnesium, usually high-potential, is used in vessel drinking-water tanks. Aluminium and zinc anodes are not permitted because their alloying elements are harmful to health.

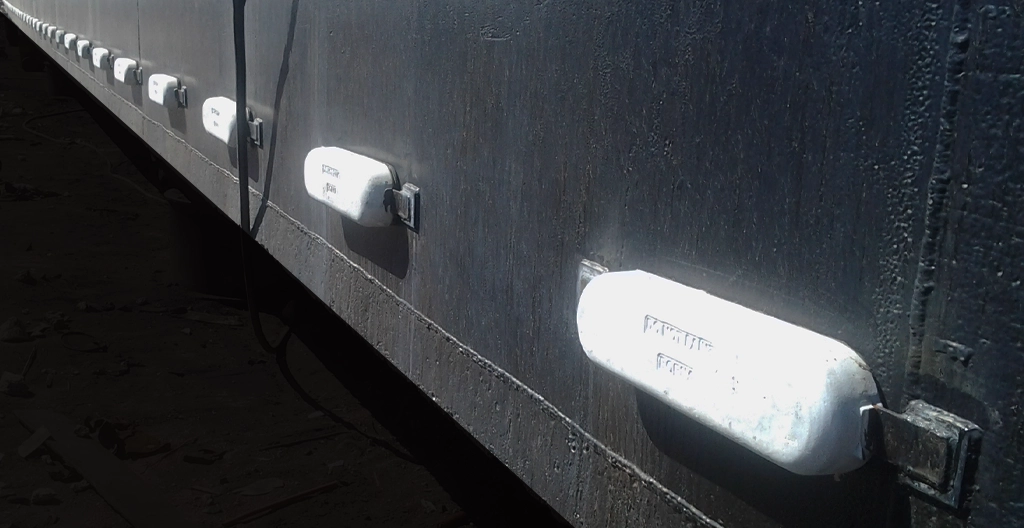

Aluminium sacrificial anode installation on vessels

For sacrificial protection, anodes are spaced evenly on the hull and at different points within vessel tanks. Their number, shape and location are determined by calculations and design experience to avoid inadequate protection or harmful interaction between anodes. Design life is usually matched to the dry-docking schedule so anodes are replaced during maintenance.

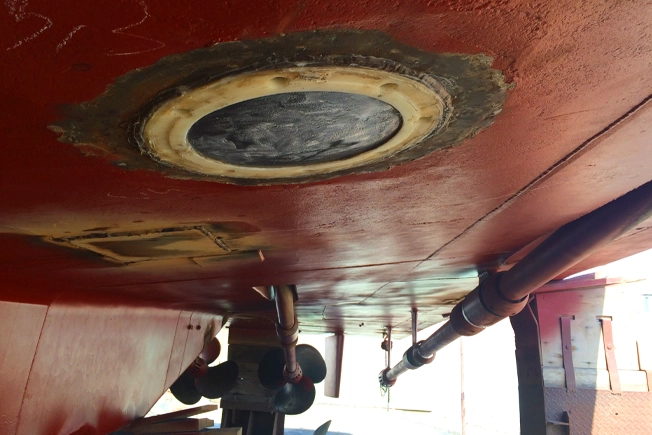

Lead–silver anode installation for impressed current vessel protection

With more than 30 years of distinguished cathodic protection experience, Borna Electronic provides design, equipment supply, consultancy and installation for ships and vessels, together with monitoring systems.
