Exothermic Welding Equipment

Exothermic welding, also known as thermite welding and commonly identified by the trade name Cadweld, is the most widely used method of connecting cables to pipelines for cathodic protection. The required equipment is listed below.

Exothermic Welding Mould

The mould is made of graphite and is available in configurations such as flat-bottom and semicircular, according to the cable size and the structure geometry. For pipelines, the pipe diameter determines the mould type. Mould life varies with the graphite material and service conditions; typically, 50 to 100 welds provide optimum use.

Weld Powder

Weld powder comprises sulphur, copper powder and other ingredients. It is supplied in different weights, such as 15, 25, 32 and 45, according to the mould type and size. Some weld powders are supplied with an ignition wick.

Disc

The disc is used to connect the cable to the structure and cover the weld location.

Cleaning Tools

After each weld, the mould must be cleaned using tools such as a wire brush or scraper.

Igniter

The igniter is used to ignite the weld powder.

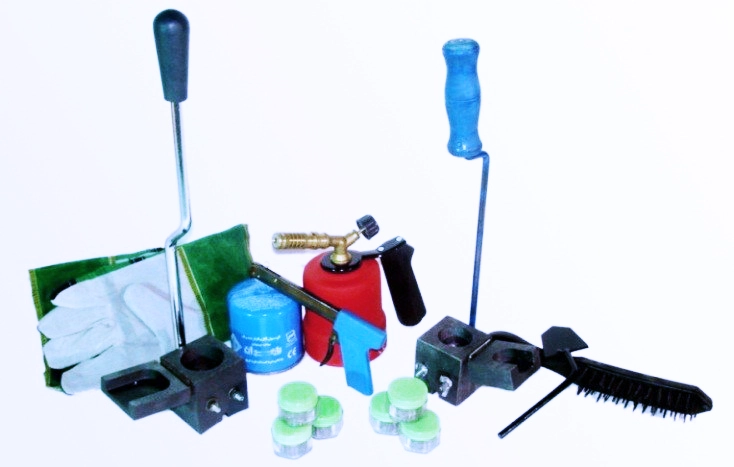

Exothermic welding equipment

Borna Electronic can supply equipment and make cathodic protection cable connections by exothermic welding Cadweld to meet customer requirements or project needs.
