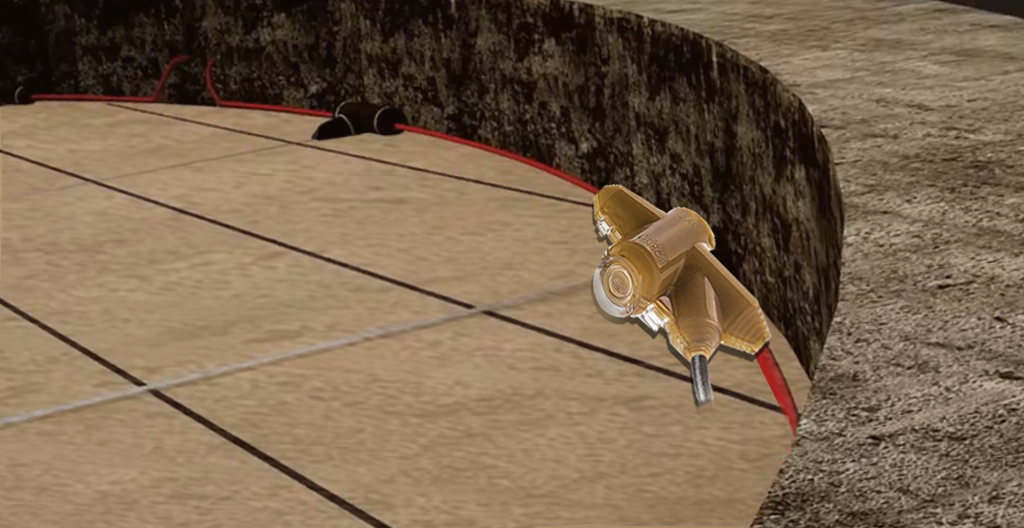

The BY1 Y-Type Resin Cable Joint, manufactured by Borna Electronics, is designed for safe and reliable branching of power cables in the same direction. It is an ideal solution for power distribution networks where current needs to be divided through an angled branch connection.
Using high-quality insulating resin, the BY1 provides excellent protection against moisture ingress, environmental contaminants, and mechanical impact. The Y-shaped design ensures uniform distribution of mechanical stress on the connected cables, delivering long-term performance in underground, industrial, and outdoor installations.
Standards
Electrical Standard: BS 7888-3
Oil & Gas Standard: IPS-M-TP-750/11
Features
- Compact and space-saving design
- Transparent, high-impact resistant plastic molds
- Visual inspection of cable connections before resin casting
- Suitable for emergency and rapid installation applications
- Fast and easy assembly, reducing installation time and costs
- Large filling opening for convenient resin pouring
- Excellent resistance to chemicals
- Resistant to alkaline soil elements
- UV-resistant construction
- Waterproof along cable runs and branch intersections
- High dielectric insulation performance
- Excellent mechanical strength and durability
Applications
- Low-voltage power distribution networks
- Underground cable branch connections
- Industrial electrical installations
- Utility and municipal power systems
- Oil, gas, and petrochemical facilities
- Outdoor and infrastructure projects
Technical Specifications
| Joint Type | Outer Cable Diameter (mm) | Number of Core Pairs | Resin Volume (ml) |
| BY1 | 6–24 | – | 170 |

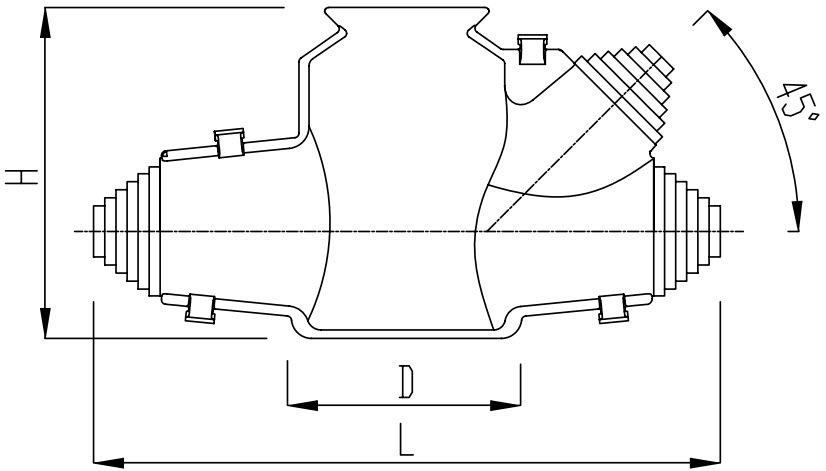

Dimensions
| Joint Type | Height (H) | Length (L) | Diameter (D) |
| BY1 | 75 mm | 135 mm | 44 mm |
